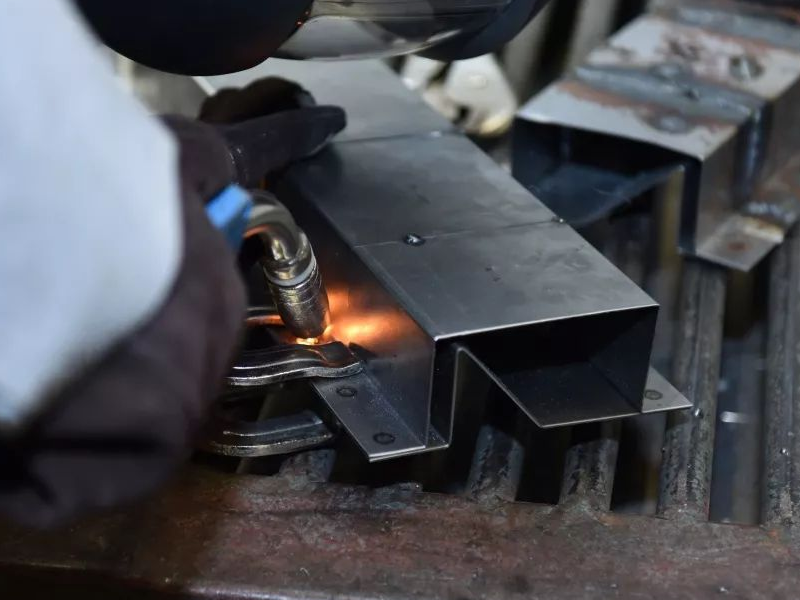

The Sheet Metal Welding: What You Need To Know

Sheet metal welding is a manufacturing process that involves joining pieces of sheet metal parts by heating and melting them together. This results in a stronger, integrated product that can also be shaped. This technique is widely used in various industries such as aircraft, automobiles, trucks, appliances, boats, ships, industrial equipment, and other projects.


Choosing the Right Welding Equipment for Sheet Metal Welding

Sheet metal welding is a process that involves joining thin pieces of metal by heating and melting them together. The process requires the right welding equipment to achieve a strong and durable joint. Choosing the right welding equipment for sheet metal welding requires consideration of several factors, including the thickness and size of the material, material type, technical data, and welding speed rate.

  • Material Thickness and Size

The thickness and size of the material determine the size of the welding equipment to be used. For thicker and larger materials, a larger welding equipment should be selected. It is essential to match the size of the welding equipment with the thickness and size of the material to achieve an efficient and effective weld. Choosing the wrong size of welding equipment can lead to a weak joint or even damage to the material.

  • Material Type

The material type is an essential factor to consider when selecting welding equipment for sheet metal welding. Different materials require different welding techniques and equipment. Some of the most common materials used for sheet metal welding include mild steel, stainless steel, aluminum, titanium, HSLA, and tantalum. Each material has different welding characteristics that require specific welding equipment to achieve a strong and durable joint.

  • Technical Data

The technical data for welding equipment is essential in determining the right equipment for sheet metal welding. Technical data such as material thickness, shape, coatings, and fastener size, determines the type of welding equipment that is suitable for the job. Micro welding, capacitive discharge, HFDC, Linear DC, and Micro-Tig welding techniques are suitable for materials with different thicknesses.

  • Welding Speed Rate

Welding speed rate and equipment duty cycle are critical factors to consider when selecting welding equipment for sheet metal welding. The welding speed rate refers to the rate at which the weld is performed. It is essential to match the welding speed rate with the equipment duty cycle to achieve efficient and effective welds. Typically, equipment with a 50% duty cycle is suitable for sheet metal welding, but there are exceptions, with Capacitive Discharge equipment and some other mini and micro welding applications.


Different Types of  Sheet Metal Welding Procedures

Sheet metal welding can be accomplished using several different welding procedures. Each welding procedure has its own advantages and limitations, making it important to choose the right method for a particular application. In this article, we will discuss the different types of sheet metal welding procedures.

  • Gas Metal Arc Welding (GMAW/MIG)

Gas metal arc welding, also known as metal inert gas welding (MIG), is the most common industrial welding process for joining thin metal sheets. GMAW/MIG welding uses a shielding gas along with the wire electrode to heat up the two metals to be joined. This method requires a constant voltage and direct-current power source. GMAW/MIG welding has four primary methods of metal transfer: globular transfer, short-circuiting, spray transfer, and pulsed-spray. Each method has its own benefits and is suitable for different applications.


  • Gas Tungsten Arc Welding (GTAW/TIG)

Gas tungsten arc welding, also known as tungsten inert gas (TIG) welding, is another popular welding process for sheet metal welding. This method uses a fixed consumable tungsten electrode to produce the weld. GTAW/TIG welding is a precise welding process that is commonly used for welding together thick sections of stainless steel or non-ferrous metals, such as aluminum. The skill required for TIG welding is higher than other welding processes due to the need for a steady hand, trained eye, and an artistic touch.


  • Shielded Metal Arc Welding (SMAW)

Shielded metal arc welding, also known as stick welding, is a manual welding process that uses an electric current to form an arc between the stick and the metals to be joined. This method is often used in the construction of steel structures and in industrial fabrication to weld iron, steel, and mild steel pipe. SMAW welding can be used to join carbon steel, alloyed steels, stainless steel, cast iron, and ductile iron.


  • Flux Cored Arc Welding (FCAW)

Flux cored arc welding is a semi-automatic welding process that was developed as an alternative to shielded welding. This welding method is often used in construction projects due to its high welding speed and portability. FCAW welding has many variables, including operating angles, voltage levels, polarity used, and speed of the wire feed. This welding process is best used in outdoor settings or under industrial ventilation hoods due to the amount of smoke and fumes created during the welding process.

  • Resistance Spot Welding (RSW)

Resistance spot welding is a welding process that uses electrodes to apply pressure and heat to the metal sheets. This welding method is commonly used in the automotive industry for joining sheet metal components together. RSW welding is a fast and efficient welding process that creates strong welds.


There are several different types of sheet metal welding procedures available, and each has its own unique advantages and limitations. When selecting a welding procedure, it is important to consider factors such as the metal thickness, the type of metal being welded, the welding position, and the desired welding speed. By choosing the right welding procedure, you can ensure that your sheet metal welding project is successful and produces high-quality welds.


Sheet Metal Welding Safety Tips


Sheet metal welding can be a hazardous activity if proper safety precautions are not taken. Here are some tips to ensure a safe welding environment:

  • Ensure a Safe Work Environment

Before beginning any welding, it is important to survey the surroundings and working conditions. If any flammable equipment or materials are present within 35 feet (10 meters) of the welding area, appropriate safety measures should be taken. If the object being welded cannot be moved, movable fire hazards should be transferred away from the welding area as recommended by OSHA.

  • Protect Yourself from Fire Hazards

If it is not possible to remove all fire hazards, appropriate measures should be taken to protect both immovable fire hazards and the welder from heat, sparks, and hot slags produced by welding.

  • Assess Risks

Welding carries various health hazards, including exposure to fumes and UV radiation. To ensure worker safety, a risk assessment should be carried out prior to beginning any welding work. This will enable the implementation of controls to manage or eliminate risks. If risks cannot be managed or eliminated, welding and cutting work should not be permitted.

  • Maintain Equipment

When working on platforms, scaffolds, or runways, safeguards should be in place to protect against falls. Welding cables and equipment should be placed to avoid obstructing passageways, ladders, and stairways.

  • Use Appropriate PPE

Welders should always wear appropriate personal protective equipment (PPE) to protect against hazards that can cause physical injury or illness. Examples of PPE include long-sleeved shirts, long pants with no cuffs, welding helmets or goggles, respirators, ear muffs/plugs, boots, and gloves.

  • Ensure Proper Ventilation

Proper ventilation is key to avoiding welding incidents and protecting employees. Ventilation involves removing air contaminants, preventing the accumulation of flammable or combustible gases or vapors, and preventing oxygen-rich or deficient atmospheres.

  • Avoid Fumes and Gases

General ventilation should be provided to keep the amount of toxic fumes, gases, or dusts below the maximum allowable concentration. Welders should wear respirators if necessary to protect against breathing in harmful substances.

  • Protect Other Workers

After completing welding operations, the welder should mark the hot metal or provide other means of warning other workers.

  • Read Labels and Documents, and Receive Training

Welders should have access to labels on containers of materials and safety data sheets and should receive training when new equipment and techniques are adopted.

  • Enforce Safety Procedures

All workers should be held accountable for following safety guidelines. If safety violations are observed, they should be reported for the benefit of all workers in the shared workspace.


Tips for Improving Your Sheet Metal Welding Quality

Here are some tips for improving your sheet metal welding quality:

  1. Use clean materials: Before welding, make sure to clean the metal surface thoroughly. Remove any rust, paint, oil, or dirt, as these impurities can affect the quality of the weld.

  2. Choose the right welding process: Different welding processes, such as MIG, TIG, or stick welding, are suitable for different types of sheet metal. Select the welding process that is best suited for the thickness and type of metal you are working with.

  3. Maintain the correct welding parameters: Each welding process requires specific parameters such as voltage, amperage, and wire speed. Make sure to adjust these parameters according to the metal thickness, welding process, and filler material you are using.

  4. Position the workpiece correctly: Proper positioning of the workpiece is critical for achieving quality welds. Ensure that the metal is held securely in place during welding, and the weld is positioned in a way that allows you to maintain good visibility and access.

  5. Use the right filler material: Choose the right filler material that matches the base metal, thickness, and welding process you are using. Using the wrong filler material can result in poor quality welds, cracking, or other defects.

  6. Monitor the weld pool: Keep a close eye on the weld pool and adjust the welding parameters as needed. If the weld pool is too large or small, adjust the voltage, amperage, or wire speed accordingly.

  7. Use the correct shielding gas: Depending on the welding process and material, you may need to use shielding gas to protect the weld from oxidation and other contaminants. Ensure that you are using the correct type and amount of shielding gas for your particular welding application.

  8. Practice good technique: Proper welding technique is critical for achieving high-quality welds. Practice maintaining a consistent arc length, speed, and angle, and use a steady hand to avoid undercutting or overfilling the weld.

  9. Inspect the finished weld: After welding, inspect the finished weld for defects such as porosity, cracks, or lack of fusion. Use appropriate testing methods, such as visual inspection, X-rays, or ultrasonic testing, to ensure the weld meets the required quality standards.

  10. Keep your equipment in good condition: Regularly maintain and clean your welding equipment, replace worn parts, and keep your work area clean and organized to ensure that you can consistently produce high-quality welds.


HSJ is a highly professional supplier of sheet metal welding services. With years of experience in the industry, HSJ has built a solid reputation for delivering top-quality welding services that meet the needs of various clients across different industries. Our team of skilled welders are highly trained and certified to carry out various welding techniques including TIG, MIG, and spot welding on a wide range of metals, including stainless steel, aluminum, and mild steel. The company utilizes state-of-the-art welding equipment and technology to ensure that its welding services are precise, efficient, and durable. We are committed to delivering exceptional welding services that exceed our client's expectations while maintaining competitive prices. HSJ also places a high priority on safety and quality control, and we adhere to strict standards and regulations in their welding processes. We have a comprehensive quality management system in place to ensure that every project is completed to the highest standard and delivered on time. If you are in need, welcome to contact us!
